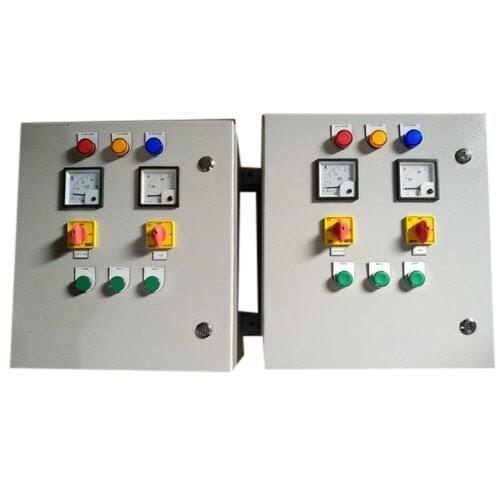

Send Inquirystarter Panel
Price 10000 INR/ Unit
starter Panel Specification
- Product Type
- Control Box
- Material
- Iron
- Surface Finish
- Powder Coated
- Surface Color
- Red
- Rated Voltage
- 415 Volt (V)
- Frequency (MHz)
- 50 Hertz (HZ)
- Maximum Output Current
- As REQ. HP Horsepower (HP)
starter Panel Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- jaipur
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 1000 Units Per Month
- Delivery Time
- 5 Week
- Sample Available
- Yes
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- standard
- Main Domestic Market
- All India
- Certifications
- GST,MSME
About starter Panel
A Starter Panel is an electrical control panel designed to safely start, stop, and protect electric motors used in industrial and commercial applications. It ensures smooth motor operation, reduces electrical stress during startup, and provides protection against overload, short circuit, and phase failure conditions.
Starter panels are widely used for pumps, compressors, conveyors, fans, and other motor-driven equipment.
Key Features
-
Motor Starting Methods:
-
Direct-On-Line (DOL) Starter
-
Star-Delta Starter
-
Soft Starter Panel
-
Fully Automatic Starter (as per application)
-
-
High-Quality Components: Equipped with contactors, overload relays, MCB/MCCB, timers, and push buttons.
-
Thermal & Short Circuit Protection: Prevents motor damage due to overload or fault conditions.
-
Phase Protection: Protection against single phasing, phase reversal, and voltage imbalance.
-
User-Friendly Controls: Start/Stop push buttons with indicator lamps for operational status.
-
Robust Enclosure: Powder-coated CRCA steel cabinet with proper ventilation.
-
Manual & Automatic Modes: Optional automation based on application needs.
Technical Specifications
-
Voltage: 415V (Three Phase) / 230V (Single Phase)
-
Frequency: 50Hz / 60Hz
-
Motor Capacity: 1 HP to 500+ HP (customizable)
-
Control Voltage: 24V / 110V / 230V (as required)
-
Mounting Type: Wall-mounted / Floor-standing
-
IP Rating: IP42 / IP54 / IP65 (optional)
- Applications
-
Water pump systems
-
Industrial machinery
-
HVAC systems
-
Agricultural motors
-
Manufacturing plants
-
Commercial facilities
Benefits
-
Ensures safe motor starting
-
Reduces inrush current (in Star-Delta / Soft Starter models)
-
Extends motor lifespan
-
Minimizes downtime and maintenance
-
Improves operational efficiency
Safety & Compliance
Manufactured in accordance with IEC / IS standards, featuring proper earthing, insulation, and interlocking systems to ensure safe and reliable motor control operations.
Durable Powder-Coated Surface
Our starter panel features a powder-coated surface that provides enhanced protection against corrosion, abrasion, and environmental wear. This ensures longevity, even under challenging operating conditions. The vibrant red color not only improves visibility but also serves as a safety feature within your facility. With a robust iron construction, this panel is built to withstand demanding environments, making it an excellent choice for both industrial and commercial sectors.
Precise Electrical Performance
Engineered for optimal electrical performance, the panel is rated at 415 Volts and operates at a frequency of 50 Hertz. Designed to accommodate a maximum output current as per your specific HP requirements, it delivers dependable control for various motor and machinery operations. Its compatibility with standard Indian electrical systems ensures hassle-free integration and efficient functionality, making it a versatile component in your electrical infrastructure.
FAQ's of starter Panel:
Q: How is the powder-coated surface beneficial for the starter panel?
A: The powder-coated surface offers superior protection against corrosion, scratches, and harsh environmental conditions. This finish helps maintain the panel's functionality and appearance over extended periods, reducing maintenance needs and increasing its lifespan.Q: What applications are suitable for this starter panel?
A: This starter panel is ideal for industrial and commercial settings where reliable electrical control is essential, such as manufacturing units, processing plants, and infrastructure projects. Its adaptability to various HP ratings makes it suitable for diverse machinery.Q: When should I consider using a starter panel with a 415 Volt rating?
A: You should use this starter panel when your equipment or motors require safe and efficient operation with a 415 Volt supply, which is standard for many industrial electrical systems in India. It helps ensure stable power distribution and equipment safety.Q: Where are these starter panels typically sourced from in India?
A: These panels are widely available from reputable manufacturers, service providers, suppliers, and traders across India. Many offer customized solutions and dependable after-sales support depending on your operational needs.Q: What is the process for installing this starter panel?
A: The installation involves mounting the panel securely, connecting it to the incoming and outgoing electrical lines as per the rated voltage and output current requirements, and ensuring all safety protocols are followed. It is recommended that installation be handled by licensed professionals.Q: How do I determine the maximum output current required for my application?
A: To determine the correct maximum output current, assess the horsepower (HP) needs of your machinery. Consulting your equipment's specifications or an electrical engineer ensures that the panel matches your operational load requirements for optimal safety and performance.Q: What are the main benefits of using an iron material for the starter panel?
A: Iron construction provides exceptional strength, impact resistance, and durability, making the panel robust enough to handle demanding environments. This enhances safety, reduces the risk of damage, and extends the service life of the panel.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
GST : 08HFRPS6992L1ZZ
