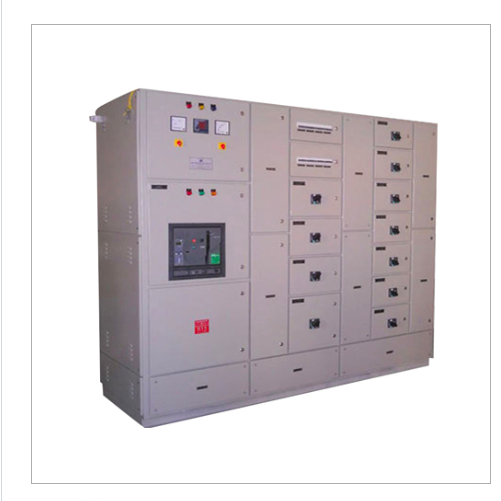

lt distribution panel

About lt distribution panel

An LT (Low Tension) Distribution Panel is a vital electrical panel designed to receive power from transformers or main supply sources and distribute it safely to various branch circuits within residential, commercial, and industrial installations. Operating at low voltage levels (typically up to 415V), it ensures efficient power management, protection, and control of electrical systems.

---

i Key Features

• Main Incomer Section: Equipped with MCCB/ACB/Isolator for safe incoming power control.

• Busbar System: High-conductivity copper or aluminum busbars with proper insulation and short-circuit withstand capacity.

• Outgoing Feeders: Multiple MCB/MCCB feeders for controlled power distribution.

• Protection Mechanisms: Overload, short circuit, earth fault, and phase protection.

• Metering & Monitoring: Provision for digital voltmeter, ammeter, energy meter, and multifunction meters.

• Capacitor Bank Integration (Optional): For power factor improvement.

• Robust Construction: Powder-coated CRCA steel enclosure with proper ventilation and cable management.

• Expandable Design: Modular structure for future load expansion.

---

i Technical Specifications

• Voltage: Up to 415V (Three Phase)

• Frequency: 50Hz / 60Hz

• Current Rating: Up to 6300A (customizable)

• Short Circuit Rating: As per system requirement

• Mounting Type: Floor-standing

• IP Rating: IP42 / IP54 / IP65 (optional)

• Form of Separation: Form 2 / Form 3 / Form 4 (as required)

---

Applications

• Industrial manufacturing units

• Commercial complexes

• Hospitals and institutions

• Data centers

• Residential complexes

• Infrastructure projects

---

i Benefits

• Ensures safe and reliable power distribution

• Protects electrical equipment from faults

• Enhances system efficiency

• Allows easy maintenance and troubleshooting

• Designed for long service life

---

i Safety & Compliance

Manufactured in compliance with IEC / IS standards, featuring proper earthing, insulation, and internal segregation to ensure maximum operational safety and reliability.

---

The LT Distribution Panel provides efficient, secure, and organized low-voltage power distribution, making it an essential component of modern electrical infrastructure.

Advanced Safety Features

Designed to provide comprehensive protection, this distribution panel integrates both overload and short-circuit protection through MCB, MCCB, and ELCB breakers. Dual earth bus provision ensures reliable grounding, minimizing electrical risks and enhancing overall system safety for both personnel and equipment.


Flexible and Expandable Design

The modular and expandable enclosure allows for future upgrades without extensive downtime. Customizable dimensions alongside options like floor-standing installation and detachable gland plates cater to unique spatial and operational requirements, ensuring seamless integration into various electrical setups.


Built for Longevity and Efficiency

Manufactured from rust-proof, powder-coated mild steel in Siemens Grey (RAL 7035), the panel is built for long-term use even in demanding environments. Natural air ventilation supports ample cooling, while LED indicators and manual/semi-automatic control systems provide user-friendly monitoring and operation.
