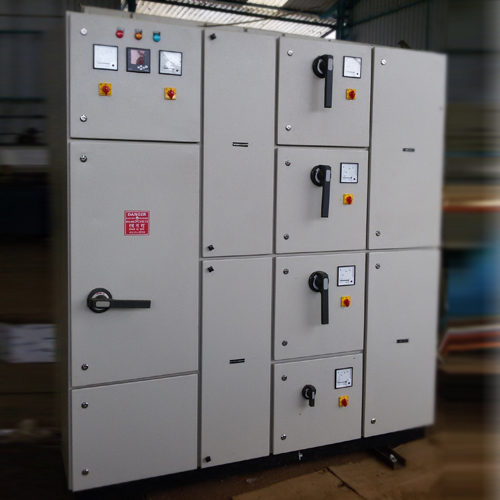

Electrical Distribution panel

Price 60000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electrical Distribution panel Specification

Rated Operation Voltage
415 V

Cabinet Material
Mild Steel

Way
3 Way / 4 Way / Custom

Components
MCB, MCCB, Busbar, Indicator, Terminal Blocks

Protection Class
Class I

Protection Level
IP54

Thickness
1.6 mm

Cooling System
Natural Air Cooling

Rated Current
Up to 630 A

Current Rating
Up to 630A

Operating Voltage
380-415V AC

Connectivity Type
Hardwired

Features
Corrosion Resistant, Easy Installation, Compact Design

Base Material
Mild Steel

Rated Insulation Voltage
660 V

Panel Type
Indoor Type

Cover Material
Powder Coated Mild Steel

Control System
Manual/Auto

Product Type
Electrical Distribution Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Grey

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
630 A

Dimension (L*W*H)
1000 mm x 800 mm x 300 mm

Application
Industrial, Commercial and Residential

IP Rating
Ip54

Display Type
Analog/Digital Meter

Operating Temperature
-10C to +55C

Mounting Type
Floor Mounted / Wall Mounted

Panel Weight
Approx. 80-120 kg (Depending on size)

Cable Entry
Top and Bottom

Door Type
Single/Double Door, Gasket Provided

Enclosure Type
Dust and Vermin Proof

Busbar Material
Electrolytic Copper

Earthing Provision
Yes, Dual Earth Studs

Electrical Distribution panel Trade Information

Minimum Order Quantity
1 Unit

FOB Port
jaipur

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
1000 Units Per Month

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
standard

Main Domestic Market
All India

Certifications
GST,MSME

About Electrical Distribution panel

An Electrical Distribution Panel (also known as a breaker panel or distribution board) is a centralized system designed to safely distribute electrical power from the main supply to multiple branch circuits within residential, commercial, and industrial facilities. It ensures efficient power management, circuit protection, and operational safety.

Key Features

Robust Enclosure: Fabricated from high-grade CRCA steel or stainless steel with powder-coated finish for durability and corrosion resistance.
Modular Design: Supports easy installation, maintenance, and future expansion.
Circuit Protection: Equipped with MCBs, MCCBs, ELCBs/RCCBs to prevent overload, short circuits, and earth leakage.
Busbar System: High-conductivity copper or aluminum busbars with proper insulation for safe power distribution.
Safety Compliance: Designed according to IEC / IS / ANSI standards (as applicable).
Clear Labeling: Organized wiring layout with proper circuit identification for ease of operation.

Applications

Residential buildings
Commercial complexes
Industrial plants
Data centers
Hospitals and institutions

Safety & Reliability

The panel is engineered with enhanced insulation, proper earthing arrangements, and secure door locking mechanisms to ensure operator safety and uninterrupted performance.

Customization Options

Indoor or outdoor (IP-rated) enclosures
Wall-mounted or floor-mounted designs
Single-phase or three-phase configurations
Customized ratings and sizes

Engineered for Versatile Applications

This distribution panel is suitable for a broad spectrum of environments, from modern commercial spaces to rigorous industrial settings. Its customizable design supports various way configurations (3/4/custom) and ensures compatibility with most electrical systems. Its robust construction and IP54 enclosure maintain dependable performance and safety over extended operational periods.

Safety and Durability Guaranteed

Constructed from mild steel and powder coated for superior longevity, the panel offers advanced protective features, including dual earth studs, quality gaskets, and Class I protection. The enclosure is dust and vermin proof, ensuring that internal components remain secure and undisturbed-an essential benefit for sensitive or high-demand installations.

FAQ's of Electrical Distribution panel:

Q: How is the electrical distribution panel installed, and what mounting options are available?

A: The panel offers flexible installation and can be either floor mounted or wall mounted, depending on your space and requirements. With dedicated cable entries at both the top and bottom and a compact design, it easily adapts to different environments, making it suitable for industrial, commercial, and residential setups.

Q: What ensures the safety and reliability of this distribution panel during operation?

A: Safety and reliability are prioritized through features such as the IP54-rated dust and vermin-proof enclosure, dual earth studs, Class I protection, and comprehensive earthing. The panel uses electrolytic copper busbars and high-quality MCBs/MCCBs, all conforming to IEC 61439 and IS 8623 standards for assured operational integrity.

Q: When should I choose an electrical distribution panel with copper busbars?

A: Copper busbars, such as those used in this panel, are preferred when high conductivity and low energy loss are important. They are ideal for installations where consistent, efficient current distribution up to 630A is required, such as in medium or large-scale industrial, commercial, and critical residential applications.

Q: Where can this panel be used, and what types of environments is it designed for?

A: The distribution panel is designed for indoor use in environments that demand reliable, safe, and efficient power distribution. Its dust and vermin-proof enclosure, robust construction, and flexible configuration make it suitable for industrial facilities, commercial complexes, and large residential buildings across India.

Q: What is the process for customizing the distribution panel to suit specific requirements?

A: The panel can be tailored to your needs by choosing the number of ways (3, 4, or custom), door options (single or double), and by selecting manual or automatic control systems. Additional configurations, such as specific types of meters (analog/digital) and connectivity features, can also be accommodated during the order process.

Q: How does the panel maintain optimal operation within its temperature range?

A: Designed to function efficiently between -10C and +55C, the panel utilizes a natural air cooling system and corrosion-resistant materials. This ensures dependable performance even in fluctuating climate conditions, making it suitable for use across diverse Indian regions.

Q: What key benefits do users gain from this distribution panel?

A: Users benefit from easy installation, robust safety features, high corrosion resistance, and a compact, adaptable design. Its reliable connectivity, clear indication systems, and compatibility with both analog and digital meters enable efficient monitoring and control for any scale of operation.
